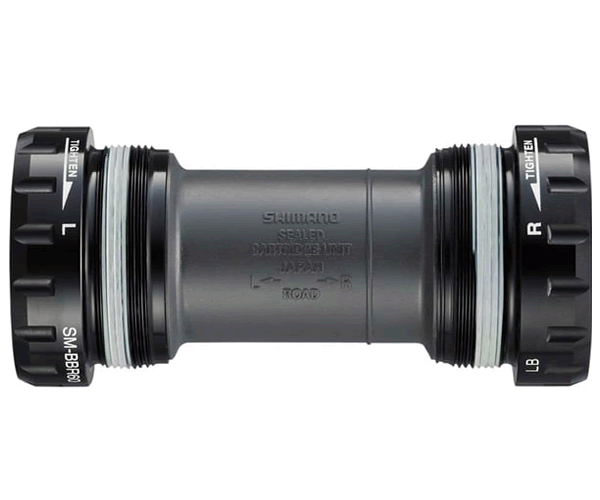

Shimano BB-R60 Ultegra - 105 bottom bracket, Italian thread cups

• Hollowtech II technology for optimal stiffness-to-weight ratio - Shimano's Hollowtech II system uses a 24mm hollow spindle integrated with the crankset, providing exceptional stiffness for efficient power transfer while keeping weight to a minimum

• Italian threaded compatibility (70mm) - Specifically designed for frames with Italian threaded bottom bracket shells (36mm x 24 TPI), commonly found on Italian road bike frames and some high-end European brands

• Dual compatibility with Ultegra and 105 groupsets - Works seamlessly with both Shimano Ultegra and 105 road cranksets, offering premium performance across different price points and groupset levels

• High-quality sealed bearing construction - Precision sealed cartridge bearings protect against water, road grime, and contaminants, ensuring smooth rotation and reliable performance in all weather conditions

• Low-maintenance design for long-lasting performance - Sealed cartridge system requires minimal maintenance while delivering consistent, smooth operation over thousands of miles of road riding

Brand: Shimano
Type: Italian
Availability: In stock Out of stock

Delivery: 2-3 working days

Regular price
£27.89
Sale price
£27.89
Regular price

Description

HollowTech II integrated bottom bracket uses a wider bearing placement and larger axle diameter for increased stiffness and efficiency

HollowTech II integrated bottom bracket seal design has minimal bearing interface ensuring smooth rolling and increased durability

Use TLFC37 or TLFC25 in conjunction with TLFC36 adaptor tool for installation and removal

For use with Ultegra - 105 - CX70 chainwheels

Product Type    Bottom Brackets

Discipline    Road

Colour    Black

Size    Italian thread

Axles Standard    24mm

Bottom Bracket Type    Italian Standard

Shipping & Returns

Our Promise

All orders are carefully prepared and dispatched within 1-2 business days. Once your package is on its way, you will receive a confirmation email with a tracking number so you can follow its journey.

Same‑Day Dispatch

Orders placed before 2pm are dispatched the same day via Royal Mail Tracked 24.

If there are any stock issues, we will contact you by phone or email to update you and reorganise delivery.

Shipping Costs

• Orders over £50 qualify for free shipping.

• Orders under £50 have a flat delivery fee of £3.00.

Letterbox‑Friendly Items

Any items that can be delivered through a standard letterbox will be sent via Royal Mail 24 for convenience.

Optional Special Delivery Upgrade

For urgent orders, you can upgrade to Royal Mail Special Delivery Guaranteed by 1pm.

This upgrade is available at checkout for orders placed before 2pm.

FAQ

Q: What's the difference between Italian threaded and English/BSA threaded bottom brackets? A: Italian threaded bottom brackets use 36mm x 24 TPI threading with a 70mm shell width, while English/BSA uses 1.37" x 24 TPI threading with a 68mm shell width. Critically, both cups on Italian thread turn counter-clockwise to tighten (both left-hand thread), whereas English has one right-hand and one left-hand thread. Italian threading is commonly found on Italian frame brands like Colnago, Pinarello, Bianchi, and some high-end European frames.

Q: How do I know if my frame has Italian threading? A: Check your frame manufacturer's specifications—Italian brands like Colnago, Pinarello, Bianchi, De Rosa, and Wilier often use Italian threading. You can also measure the shell width (70mm for Italian vs 68mm for English) or try threading in a bottom bracket cup—Italian cups thread counter-clockwise on both sides. If you're unsure, consult your bike shop or frame documentation before purchasing.

Q: Is this bottom bracket compatible with all Shimano Hollowtech II cranksets? A: Yes, this bottom bracket works with all Shimano Hollowtech II road cranksets including Dura-Ace, Ultegra, 105, Tiagra, and Sora models that use the 24mm spindle standard. It will also work with some third-party cranksets designed for Shimano's Hollowtech II system. The only difference from the English version is the threading—the bearing system and crankset compatibility are identical.

Q: What special considerations are there when installing Italian threaded bottom brackets? A: Remember that both cups thread counter-clockwise (left-hand thread) to tighten, which is opposite to most threaded components. Use a Shimano Hollowtech II bottom bracket tool, apply waterproof grease to the threads and shell faces, and torque to 35-50 Nm on both sides. Because both cups have the same thread direction, proper torque and thread preparation are critical to prevent loosening. Professional installation is recommended if you're unfamiliar with Italian threading.

Q: How long will this bottom bracket last before needing replacement? A: Under normal road riding conditions with regular maintenance, expect 5,000-15,000 miles of service life. Riders in wet climates or those who frequently ride in rain may see 3,000-8,000 miles, while those in dry conditions with good bike hygiene can exceed 15,000 miles. Replace when you notice rough rotation, creaking, lateral play in the cranks, or increased resistance. Keep the bike clean and avoid high-pressure water near the bottom bracket to maximize lifespan.

Shimano BB-R60 Ultegra - 105 bottom bracket, Italian thread cups
